gCore POTS shield / weeBell

Stacks Image 5

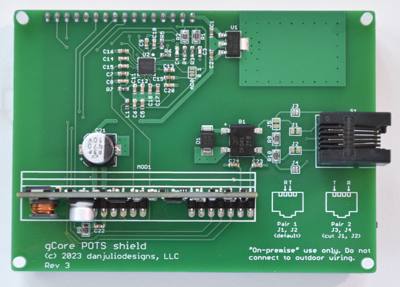

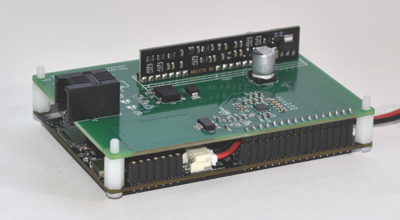

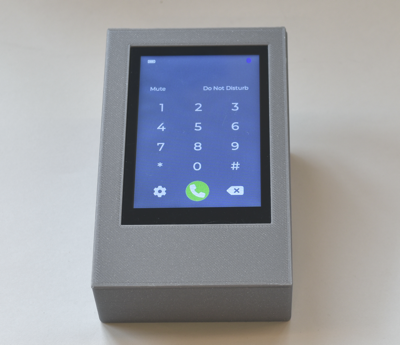

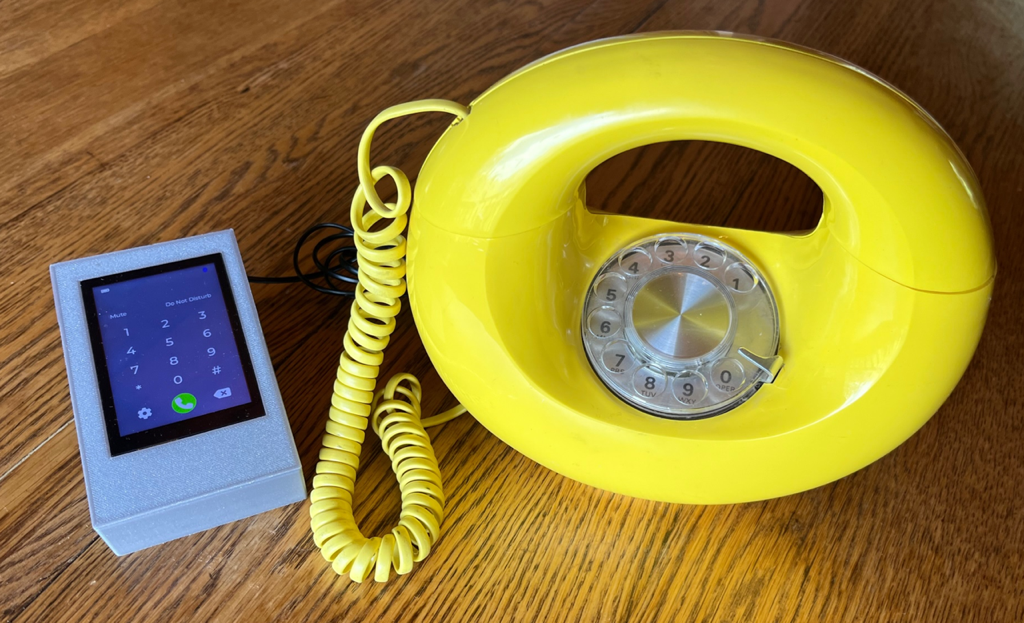

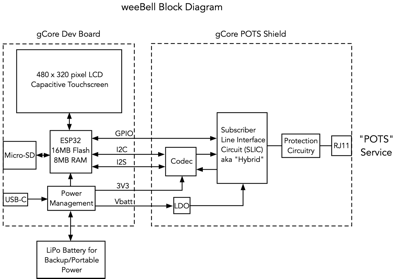

The gCore POTS shield is an expansion board for gCore. It contains a codec and a ringing Subscriber Line Interface Circuit (SLIC) for 2-line 600-ohm POTS (Plain Old Telephone Service) telephones. With gCore it is used to create weeBell, a personal telephone exchange (technically a Foreign Exchange Service or FXS device). Different firmware running on the gCore allows weeBell to enable use of old school rotary and DTMF telephones with a cellphone via Bluetooth or as a VOIP devices using the SIP protocol or even as a prop or installation controller allowing people to hear and leave recordings via a telephone. The weeBell project is documented on hackaday.io.

The gCore POTS shield, along with pre-programmed gCore boards, can be found on tindie.

Features


  • Generates -48VDC line bias
  • Generates ring voltages
  • Detects off-hook and on-hook conditions
  • Supports rotary and DTMF dialing
  • Supports audio via 16-bit I2S codec
  • Supports Caller ID generation

Applications


  • Bluetooth Handsfree telephone service
  • SIP-based VOIP telephone service
  • Prop and Installation telephone controller

Links


  • gCore POTS shield github repository (includes 3D enclosure files)
  • weeBell_bluetooth repository - gCore firmware for Bluetooth handsfree

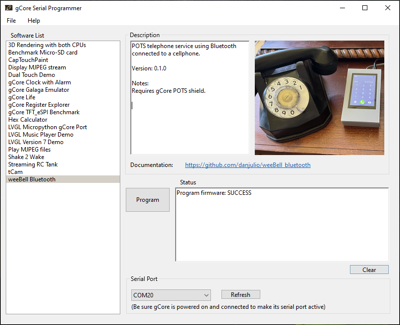

Pre-compiled firmware may be loaded onto gCore using the gCore Serial Loader program.

Stacks Image 82
Stacks Image 13
Stacks Image 22
Stacks Image 20
Stacks Image 18

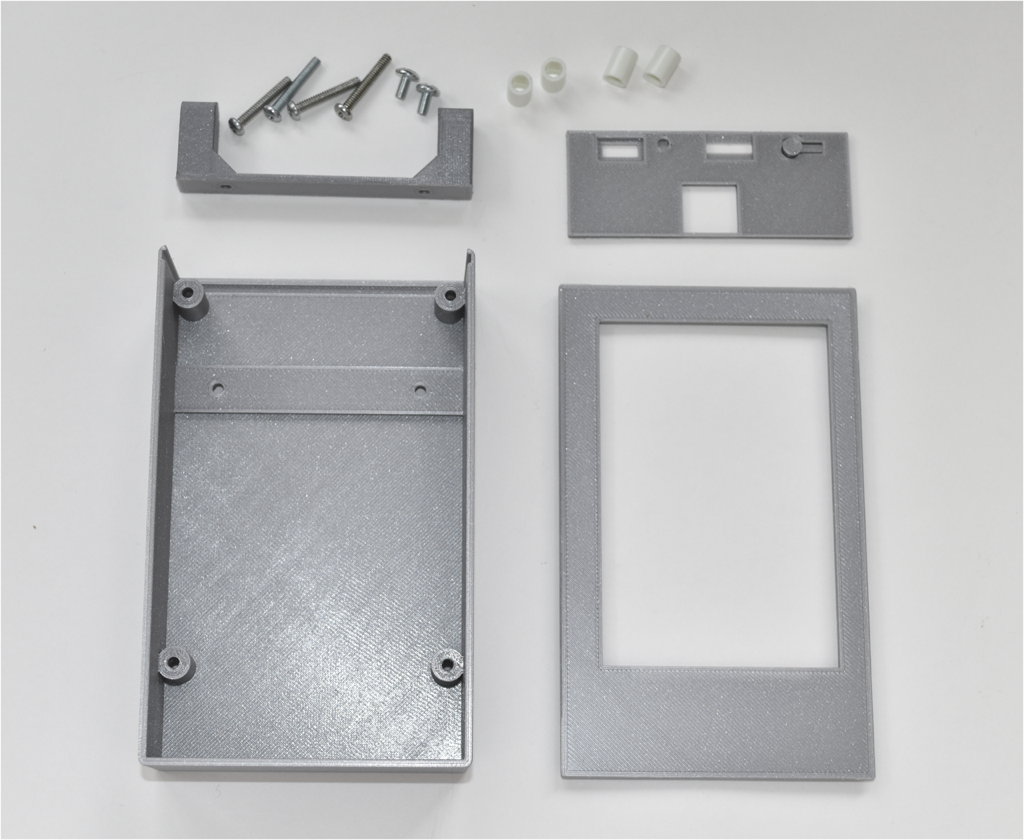

3D printed enclosure
Stacks Image 76
